Know more about this product

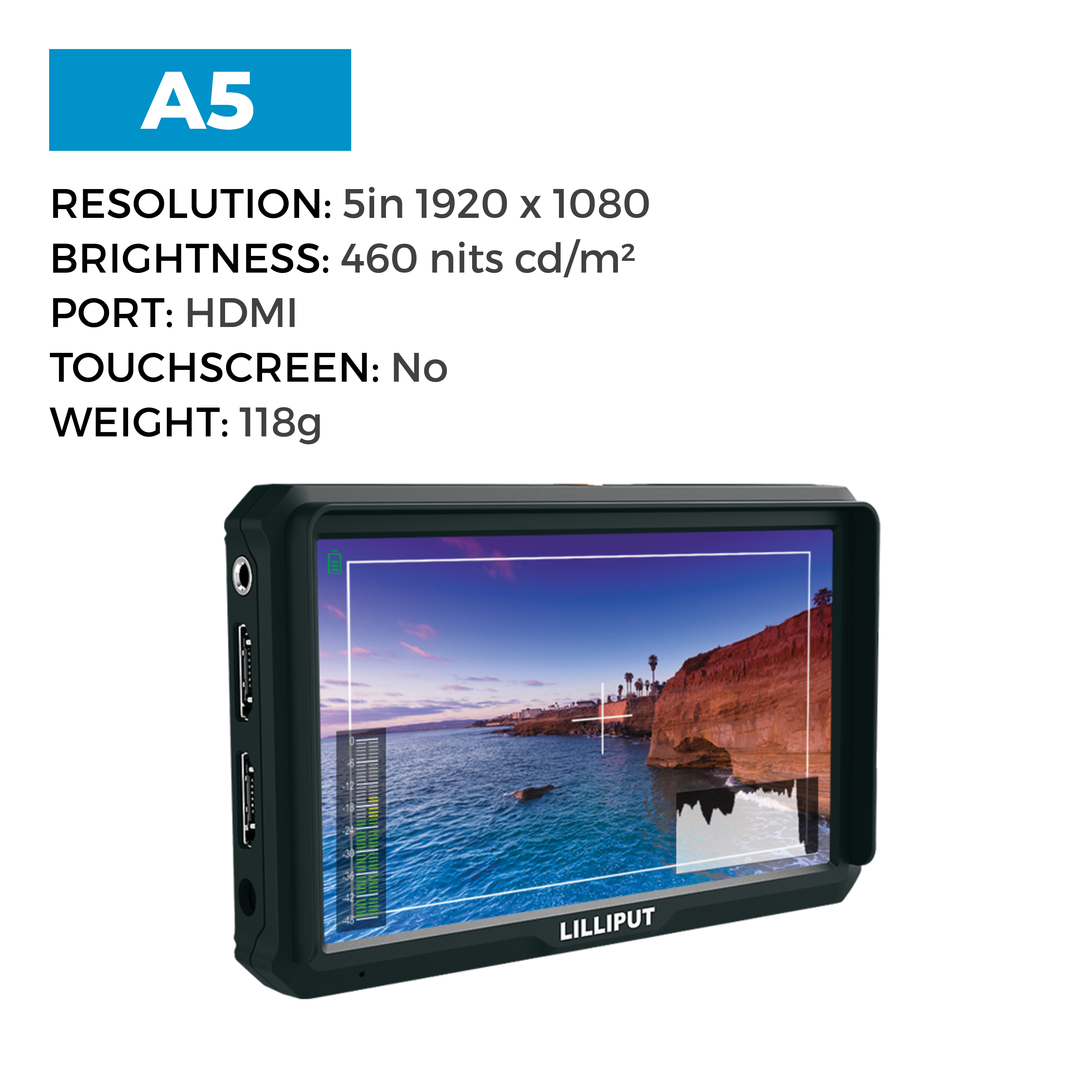

This compact, lightweight, fully featured A5 5" On-Camera Monitor from Lilliput is designed to take on almost any production. The 1920 x 1080 LCD screen features 460 cd/m² brightness, 1000:1 contrast ratio, and 170° viewing angle. Its HDMI 1.4 input is compatible with DSLRs, mirrorless cameras, and professional camcorders and can input up to UHD 4K 3840 x 2160 video at 30 fps. It also features a loop-through HDMI output for additional displays.

A built-in, dual-purpose NP-F / LP-E6 battery plate is provided to power the monitor. When shooting outdoors, the included sunhood makes the screen easier to see by blocking any glare. An included articulating shoe mount attaches to the monitor's 1/4"-20 mounting thread and allows you to secure the A5 to your camera via a standard accessory shoe.

Full HD Display:

The Full HD display supports up to UHD 4K30 input and features 1920 x 1080p resolution, 1000:1 contrast ratio, and 460 cd/m² brightness

Lightweight:

The compact, lightweight monitor weighs less than five ounces

Dual Battery Plate:

The built-in dual-purpose battery plate supports both L-Series/F-970 and LP-E6 type batteries.

Mounting Options:

The monitor features a 1/4"-20 mounting thread which accommodates the included ball shoe mount

Monitoring Tools:

Analyze the incoming video signal with built-in video monitoring tools to achieve correct exposure, focus, and color balance. Built-in functions include:

• Timecode display
• Pixel zoom
• Pixel-to-pixel
• Audio level meters
• Check exposure
• Check field
• Focus peaking
• False color
• Histogram
• Zebra
• Color bars
• Image flip
