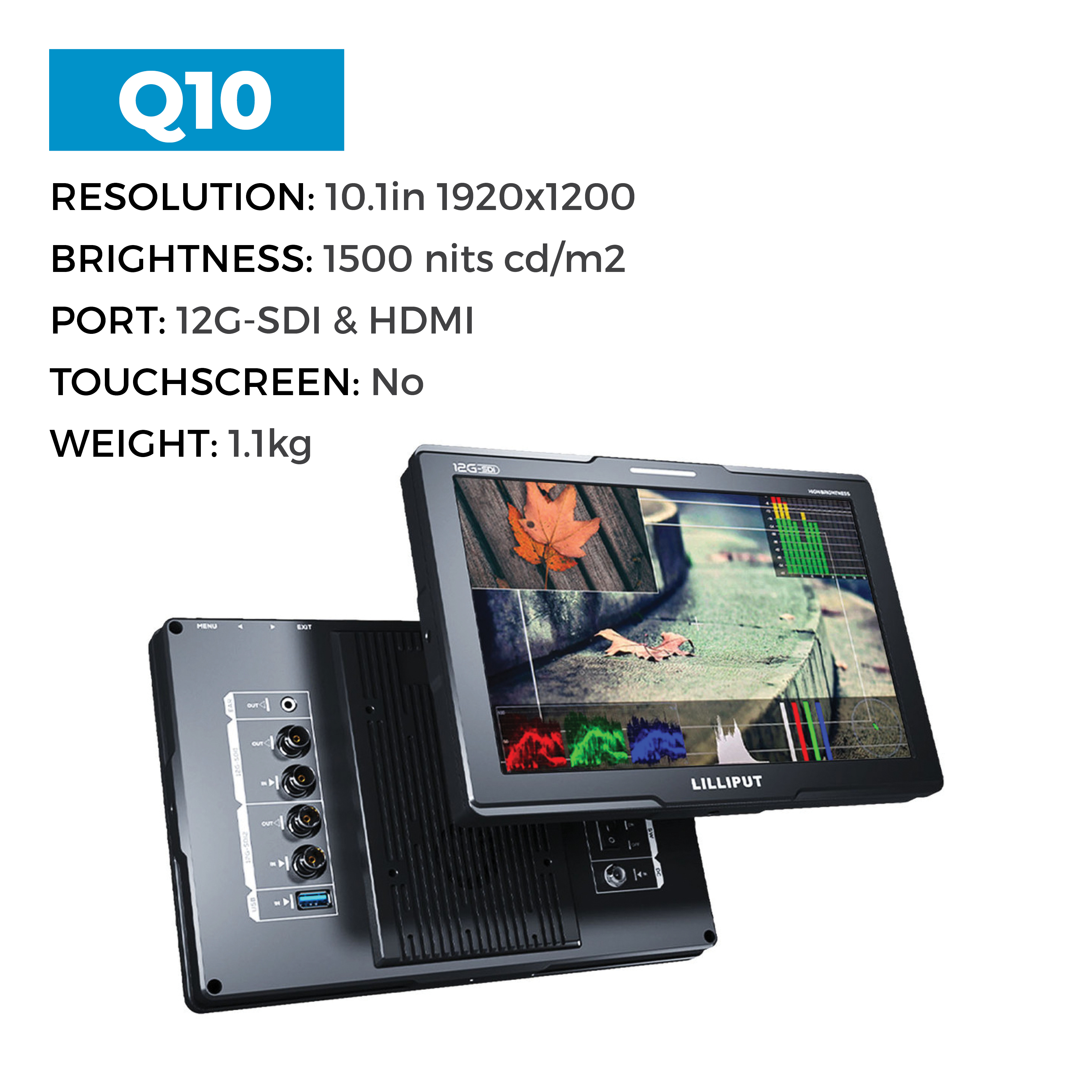

Input, pass through, and display 4K DCI, 4K UHD, and Full HD on this Q10 10.1" Ultrahigh Brightness On-Camera Monitor with 2 x 12G-SDI and 1 x HDMI from LILLIPUT. With a 1500 cd/m² maximum brightness, you can use this monitor on exterior shoots without a sunhood as well as on interior shoots. The monitor supports frame rates from 24 to 60p, covering Us and EU cinema frame rates. Featuring both HDMI and SDI in and out, the monitor can easily fit into most workflows.

The monitor supports a 170° H/V viewing angles for good color and contrast, even when viewed from extremely off center. The monitor powers from a DC input, supporting 7 to 24 VDC and it comes with an L-series battery plate that you can mount on the back. Optional V-mount and Gold mount battery plates are available. A Tally cable features pigtails that allow you to add Tally info. An included suitcase can carry your monitor and accessories to and from location, and can be used for storage when not in use.

Frame Rate Support

The monitor supports DCI 4K, 4K UHD, and Full HD frame rates from 24 to 60p in both NTSC and PAL compatible frame rates. The monitor also supports HD video at 24 fps to allow you to see video shot at cinema frame rates.

12G-SDI PiP or PIB

You can choose to display the two 12G-SDI signals on the monitor's screen simultaneously as either picture-in-picture, or picture-by-picture (side-by-side)

Signal Display Tools

Video
3D-LUT HDR
Waveform
Focus Peaking
False Color
Histogram
Vectorscope
Exposure
Check field
Pixel Zoom
Pixel-to-Pixel
Marker

Audio
Level meter display
Audio Vector

Display
Color Temperature
Color Bar
Color Gamut

Unit	NOS
Manufacturer	Lilliput
Country of Origin	China

Lilliput Q10 10.1" Ultrahigh Brightness On-Camera Monitor with 2 x 12G-SDI, 1 x HDMI
