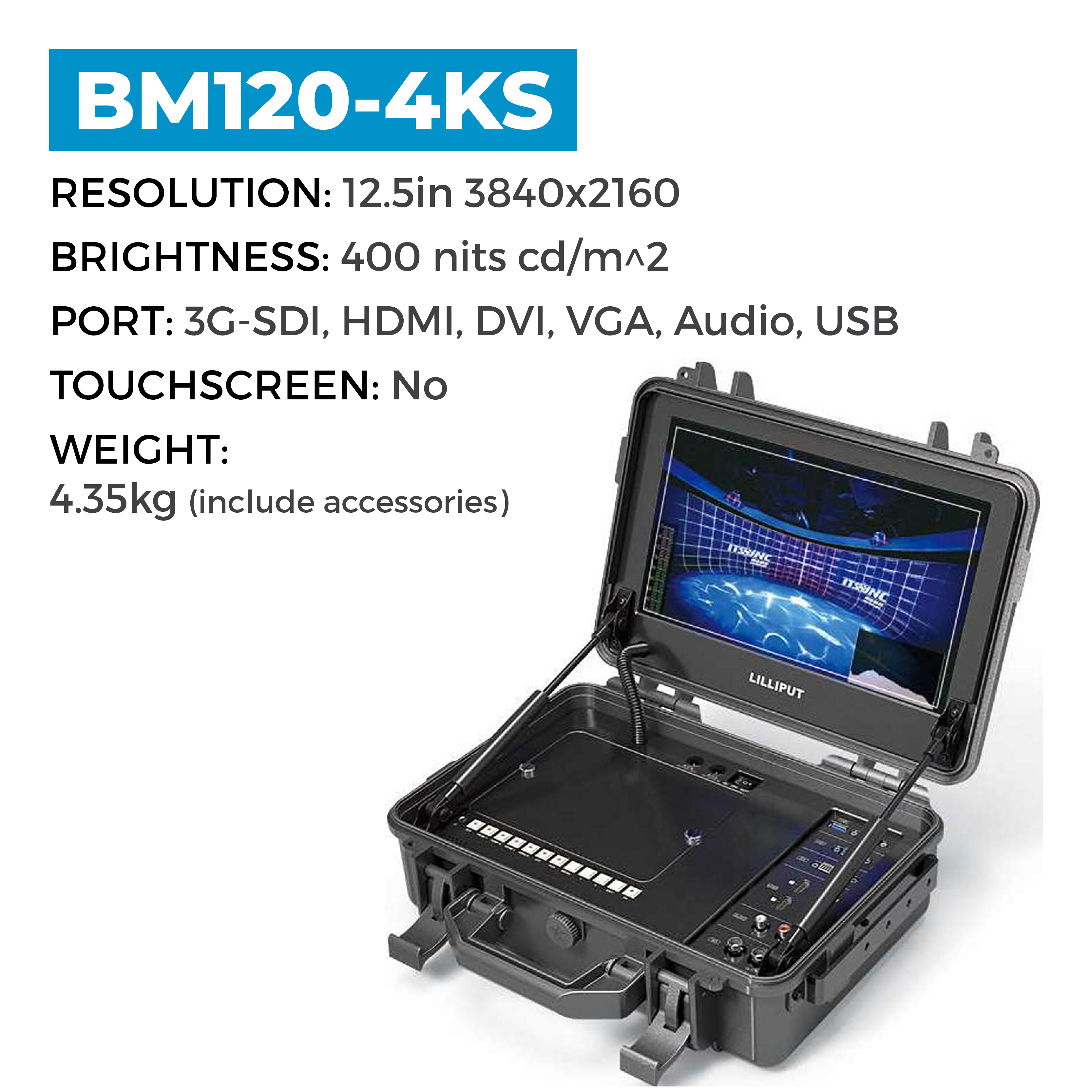

Built for travel and location work, the Lilliput 12.5" 4K Broadcast Director Monitor with SDI, HDR & 3D LUTS in Hard Case is a portable self-contained monitor solution with a wealth of features suited to broadcast productions. Enclosed in a protective case, the monitor's 3840 x 2160 LCD panel is built into the lid, with the V-mount battery plate and inputs/outputs located in the base, and with all connections protected from dust, water, and damage during transport and storage. The case lid has two pistons that protect the built-in panel by preventing the lid from being jerked open or accidentally slammed shut.

The monitor has 3G-SDI input and output supporting 1080p60, two HDMI 2.0 inputs that support 4K60, and two HDMI 1.4b inputs that support 4K30. The monitor also supports VGA and DVI inputs. Video signals inputted via any of these ports will be properly scaled to fit the entire screen. The USB port is used to load LUTs into the monitor, while analog audio from the RCA inputs or embedded digital audio from video inputs can be heard using the monitor's built-in speakers or via the 3.5mm headphone output. There is a tally input, and a DB-9 tally adapter is included to utilize tally information on the monitor. The monitor also supports adjustable HDR color spaces, and you can choose built-in presets or load custom 3D LUTs via its USB port. For power, this monitor accepts a V-mount battery (not included), and it has a built-in coaxial power input that accepts 10 to 24 VDC

Monitoring Tools :-

Peaking
Check field
Image rotation/flip
Overscan
Underscan
Image freeze
Pixel to pixel
False color
Exposure (SDI-only)
Histogram (SDI-only)
Timecode (SDI-only)
Aspect ratio selection
Screen markers
Color space
HDR
Color temperature adjustment

HDR and 3D LUTs :-

When HDR is activated (HDMI 1 only), the display reproduces a greater dynamic range of luminosity, allowing for colors and lighter and darker details to be displayed more clearly. You can use preset Logs or load your custom LUTs via the USB port.

Selection Buttons :-

Below the battery slot are dedicated input select buttons with menu and navigation buttons.

Accessory Mounting :-

An accessory mounting bar is mounted on the right side of the case exterior, allowing you to attach accessories such as a wireless video receiver to the case.

Power :-

The monitor features a V-mount for use of batteries, and it also has both a 10 to 24V power input and a 12V power output

Unit	NOS
Manufacturer	LILLIPUT ELECTRONIC TECHNOLOGY CO.LTD
Country of Origin	China

Lilliput BM120-4KS 12.5 Inch 4K Broadcast Director Monitor With Hard Case
