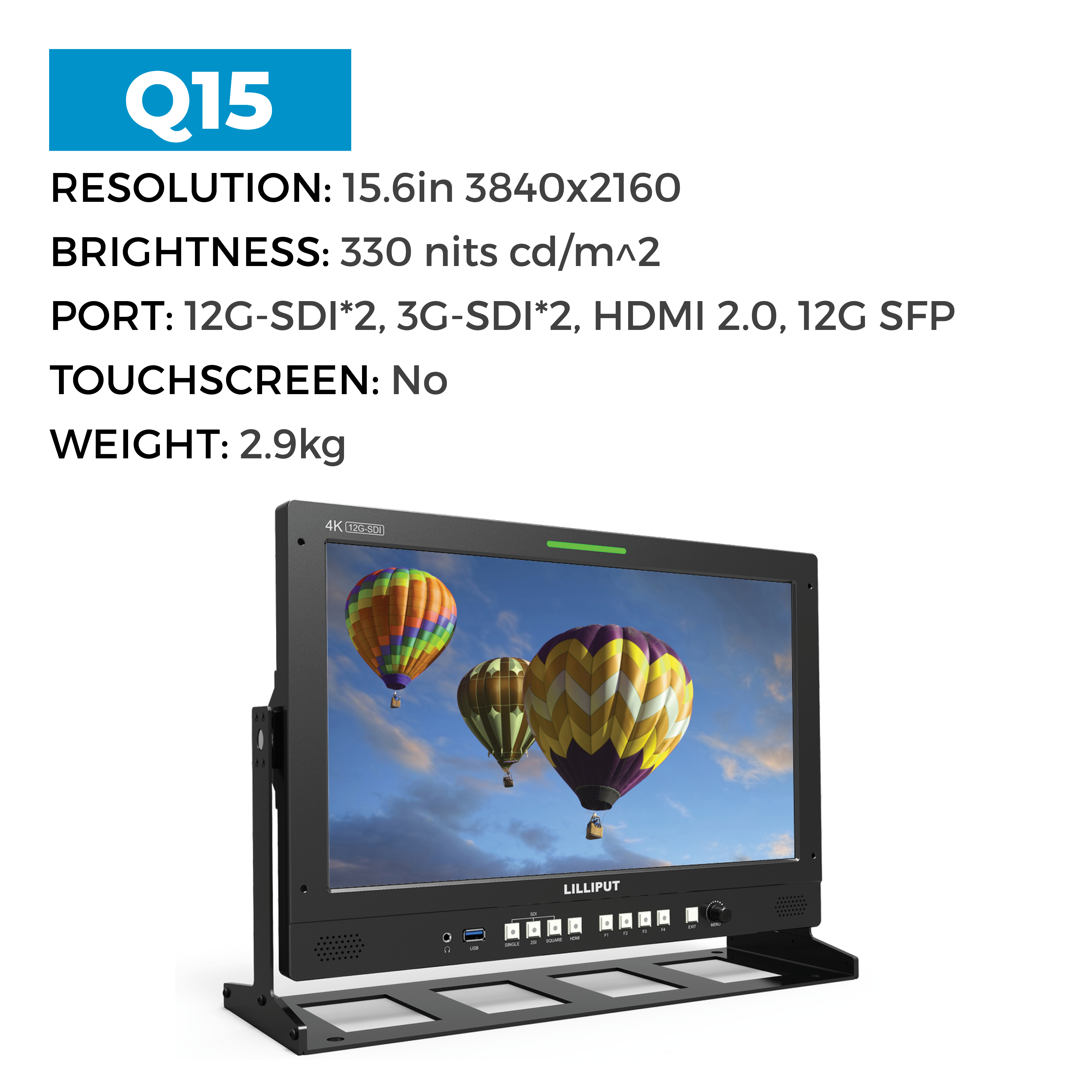

The Lilliput 15.6" 12G-SDI/HDMI Broadcast Studio Monitor is a 15.6" native UHD 4K monitor with a V-mount battery plate, useful for both studio and field situations. Supporting up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160), the monitor features one HDMI 2.0 input and four SDI inputs (two 12G, two 3G), allowing for single, dual, and quad-link SDI input. The monitor also features loop-through HDMI and SDI outputs to pass the signal downstream. For critical color work, the monitor supports the PRO/LTE version of LightSpace CMS (not included).

Input video signals are automatically scaled to fit the entire 3840 x 2160 screen. Audio embedded in the HDMI and SDI signals play through the monitor's speakers, and a 3.5mm headphone jack allows you to monitor without outside noise. The monitor also supports adjustable HDR color spaces, including HLG, and you can select from 17 built-in 3D-LUTs or import six of your own. In the studio, the included power supply allows you to power the monitor from a mains outlet via the 4-pin XLR port, or you can power it from a V-mount battery using the included battery plate. The monitor comes with a mounting bracket for desktop use and a VESA mounting plate for mounting in the field.

Features:

Monitoring Tools

Peaking
Check field
Image rotation/flip
Overscan
Underscan
Image freeze
Pixel-to-pixel
False color
Exposure
Histogram
Timecode (SDI-only)
Aspect ratio selection
Screen markers
Color space
HDR
Color temperature adjustment

HDR and 3D LUTs

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing for colors and lighter and darker details to be displayed more clearly. You can use preset Logs or load your own custom LUTs in .cube format via the front panel USB port.

Audio

The monitor can display the Lissajous shape, most useful when used in audio post-production work for detecting phase variance.

Assignable Buttons

Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor's menu system.

Remote Control

The monitor supports RS-422 via discrete in and out RJ45 connectors. This allows you to control the monitor from computer applications, as well as link multiple monitors together.

Calibration

The monitor supports color calibration using an optional PRO/LTE version of LightSpace CMS, to ensure your monitor is displaying your image accurately.

Fiber

An integrated slot accepts an optional SFP+ module, should you require SFP+ fiber connection.

Unit	NOS
Manufacturer	Lilliput
Country of Origin	China

Lilliput Q15 15.6" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)
