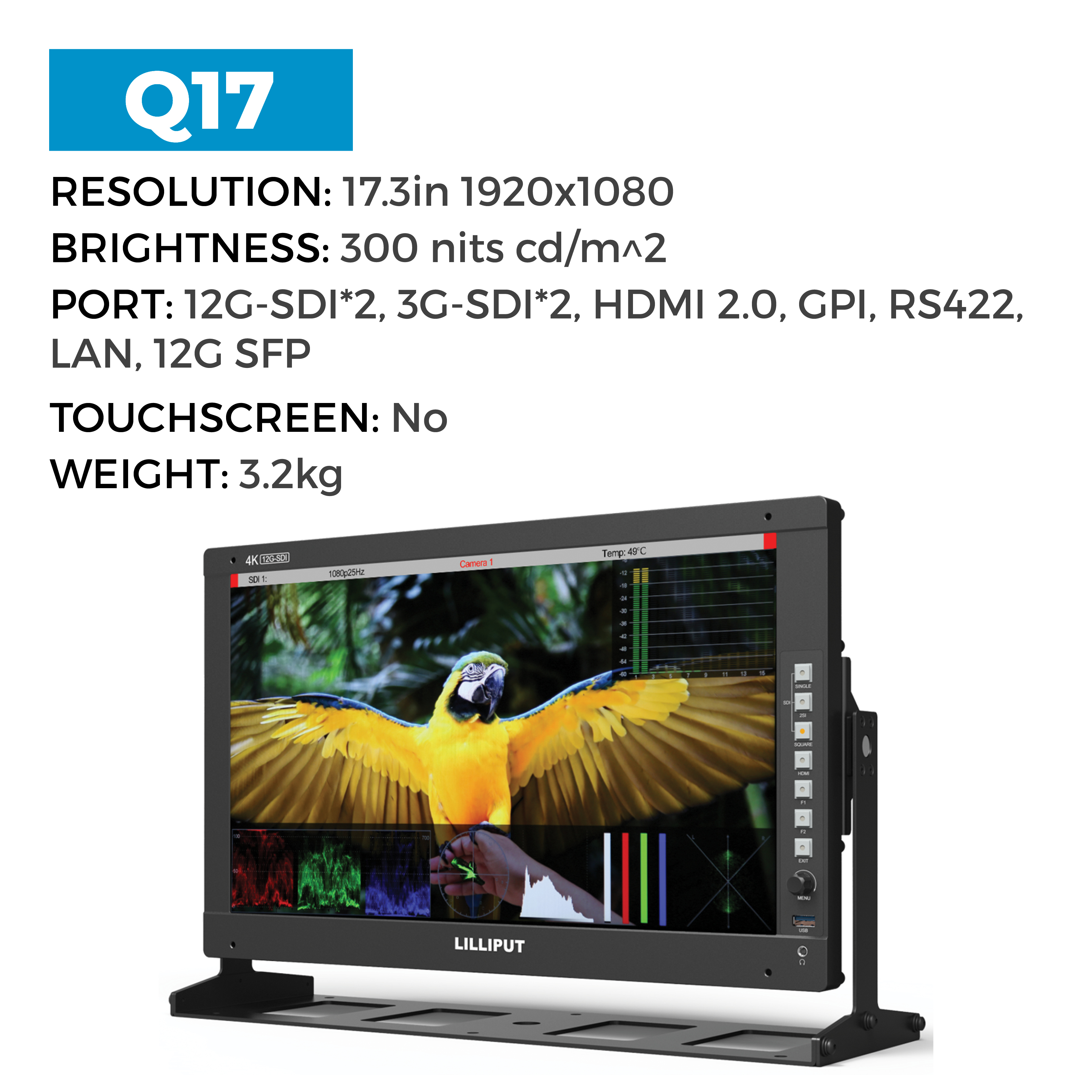

The Q17 is a broadcast monitor with 12G-SDI, carrying all the camera-assist features and audio/video analysis functions. It can also be remote controlled through a LAN port, GPI and RS422. It is designed for professional video and film industry use. This is the most full-featured professional video monitor on the market.

Pro features that help you obtain optimal images include HDR and 3D LUT support, adjustable gamma, LAN and RS-422 remote control options, and an audio vector and level monitoring. Monitor display functions include a 16:9 aspect ratio, quad-view, false color, focus peaking, check field, image flip, image freeze, selectable markers, and color temperature functions. The Q17 monitor comes with multiple mounting options, a USB drive, an acrylic screen protector, and a carrying case.

Versatile Inputs/Loop Outputs

12G-SDI single/dual/quad link
3G-SDI
HDMI 2.0

Color Calibration

Color Spaces

SMPTE C
Rec. 709
EBU

Color Temperature

3200/5500/6500/7500/9300K
Customizable settings

Gamma Options

Gamma can be adjusted between 1.8 to 2.8 for better detail in dark areas

Remote Control

LAN control
RS-422 control
Lissajous audio vector
Audio levels

High Dynamic Range

Selectable HDR offers greater detail in highlights and shadows
Supports ST2084/ST2084 1000/HLG

Display Functions

Quad-view
False color
Focus peaking
Check field
Image flip
Image freeze
Selectable markers
Color temperature selection

Versatile Mounting

Tabletop base
Tilting bracket
Carrying case
Rack-mountable

Unit	NOS
Manufacturer	Lilliput
Country of Origin	China

Lilliput Q17 17.3" 12G-SDI/HDMI HDR Monitor
