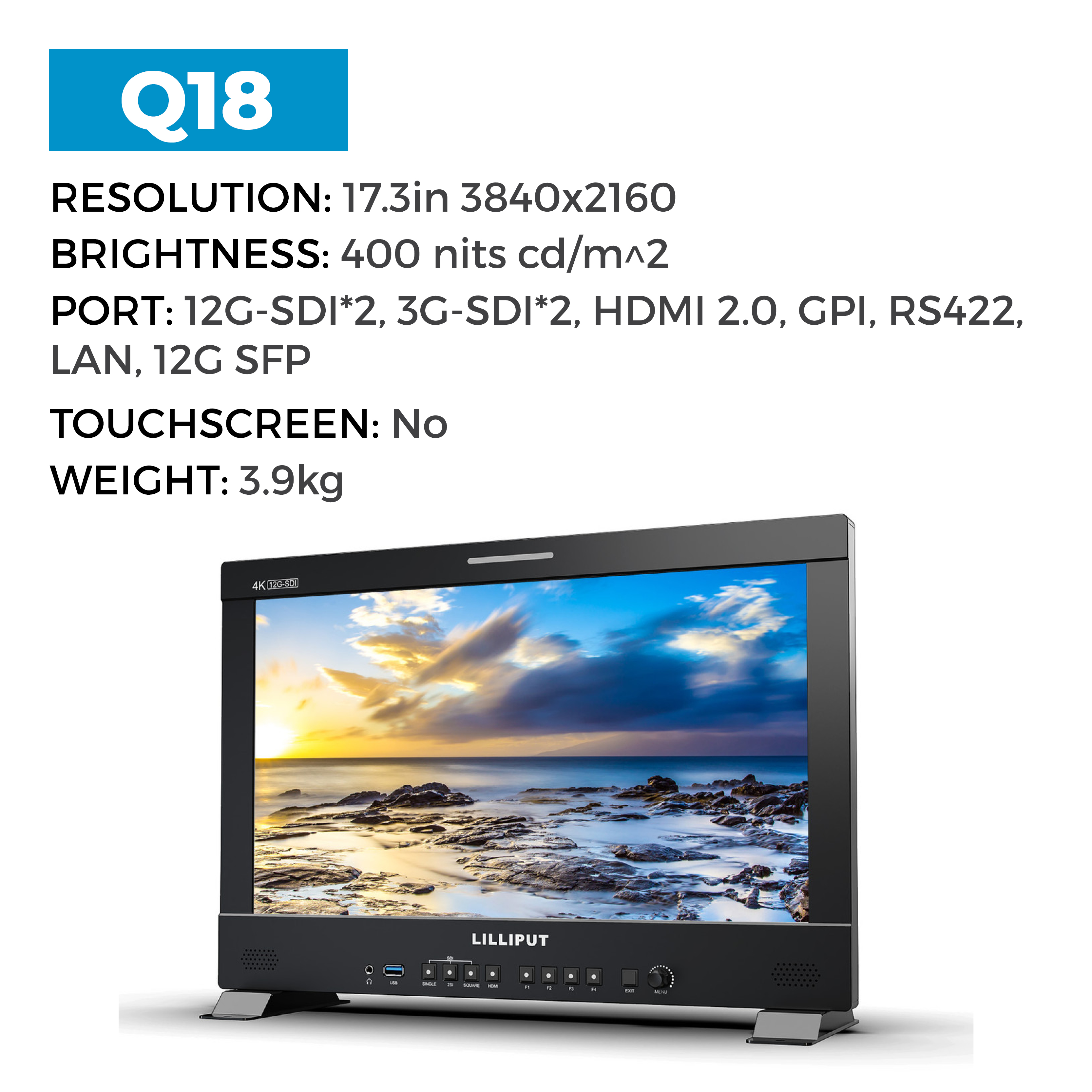

The Q18 17.3" 12G-SDI/HDMI Broadcast Studio Monitor from Lilliput is a 17.3" broadcast studio and field monitor with a V-mount battery plate and a native resolution of 3840 x 2160. It has the capability of supporting up to DCI 4K60 and automatically scales all incoming video signals to properly display these on its UHD screen, which boasts a 1200:1 contrast ratio, a viewing angle of 170°, and 400 cd/m² brightness. The Q18 features an HDMI 2.0 input and HDMI loop-through output, as well as two 12G-SDI and two 3G-SDI inputs with respective12G-SDI and 3G-SDI outputs.

The monitor supports HDR color spaces and the optional PRO/LTE Colour Space CMS for critical color correction workflows. You can also load custom 3D LUTs for quick access to a variety of color reference options. A 12 VDC power supply is included for powering the monitor from an AC outlet when working within a studio environment, or you may also power the unit with a V-mount battery using the included battery plate.

Features:

Monitoring Tools

Peaking, Check field, Image freeze, Pixel-to-pixel, False color, Exposure, Histogram, Timecode, Screen markers, Color space, HDR, Color temperature adjustment

HDR and 3D LUTs:

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing for colors and lighter and darker details to be displayed more clearly. You can use preset Logs or load your own custom LUTs in .cube format via the front panel USB port.

Supported Log Formats:

SLog2. SLog3, CLog, NLog, ARRILiog, JLog, and User.

Supported HDR:

ST2084 300/1000/10000/HLG.

Audio:

The monitor can display the Lissajous shape, most useful when used in audio post-production work for detecting phase variance.

Assignable Buttons:

Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor's menu system.

Remote Control:

The monitor supports RS-422 via discrete in and out RJ45 connectors. This allows you to control the monitor from computer applications, as well as link multiple monitors together.

Calibration:

The monitor supports color calibration using an optional PRO/LTE version of Colour Space CMS to ensure your monitor is displaying your image accurately.

Fiber:

An integrated slot accepts an optional SFP+ module, should you require an SFP+ fiber connection.

Unit	NOS
Manufacturer	Lilliput
Country of Origin	China

Lilliput Q18 17.3" 12G-SDI/HDMI Broadcast Studio Monitor
