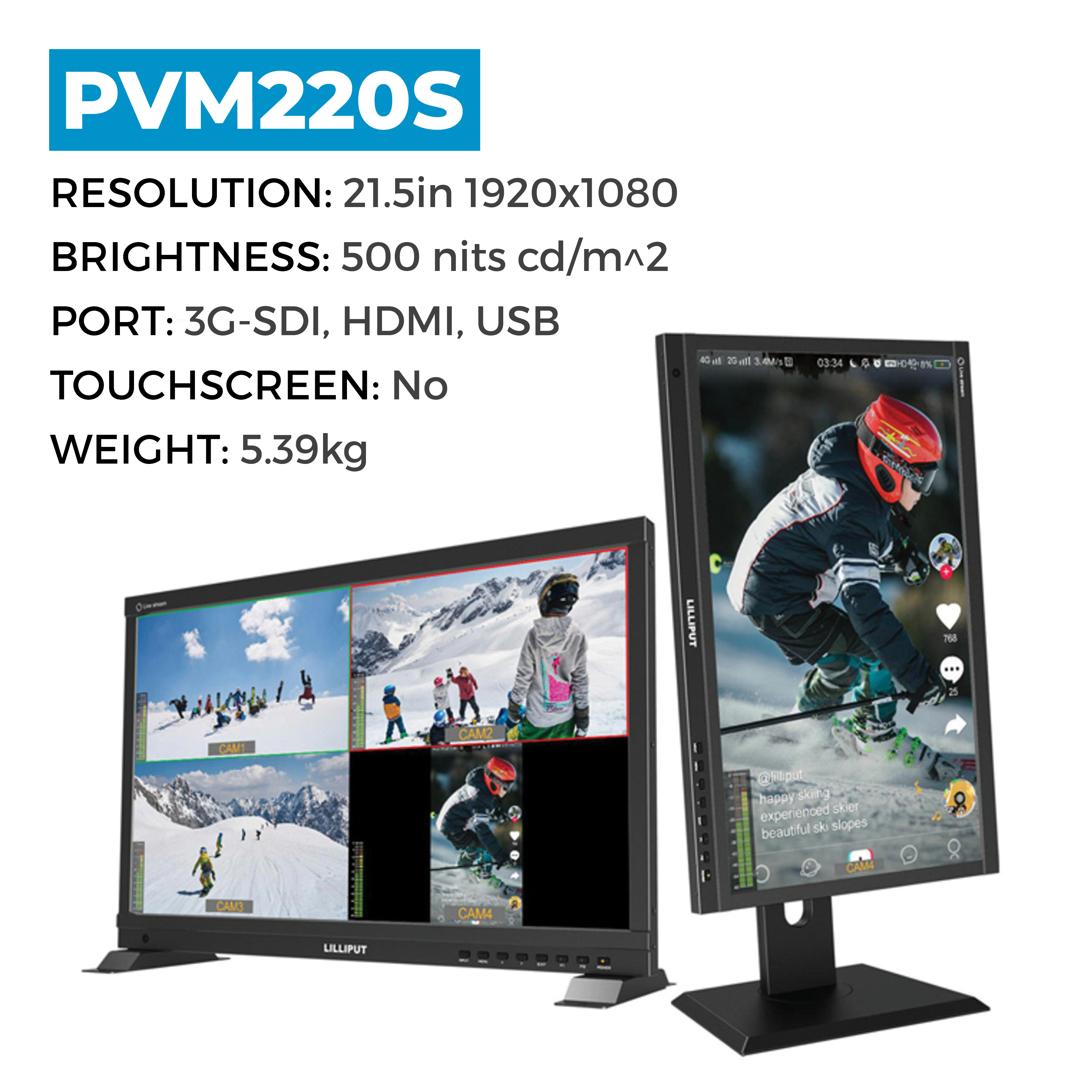

The PVM220S 21.5" 3G-SDI/HDMI Broadcast Monitor from Lilliput features a quad-split display, preview and program output, and both horizontal and vertical display modes suitable for social media content. This 1920 x 1080 resolution monitor provides 3G-SDI, HDMI, and USB Type-C audio input and 3G-SDI and HDMI outputs. It offers 500 cd/m2 brightness, 1500:1 contrast, 2-channel on-screen audio monitoring, and multiple imaging tools for creating an accurate display.

Versatile Video Input and Output

Dual 3G-SDI inputs, dual 3G-SDI outputs
Dual HDMI inputs, single HDMI program output
Single USB Type-C input

Quad-Split Multiview

Input and view up to four 1080p60 signals

USB Vertical Display

USB Type-C input can be displayed vertically for social media-oriented content

Workflow

Cut between preview and program for live mixing
Pair with a router and your computer or phone for streaming

Audio

Selectable audio monitoring enables you to keep an eye on your audio levels
Supports 2-channel embedded audio

Imaging Tools

Multiple tools for creating an accurate display include:Center and safety markers
Focus peaking
Histogram, zebra, and false color
Color temperature selection
Check field and freeze frame

Function Buttons

Two front-panel buttons can be assigned to your most-used functions

Versatile Mounting

Wall mountable using its 75 x 100mm VESA pattern
Tabletop support using the included feet

Unit	NOS
Manufacturer	Lilliput
Country of Origin	China

Lilliput PVM220S 21.5" 3G-SDI/HDMI Quad-Split Broadcast Monitor
