Moza iFocus-M Wireless Lens Motor
By MOZA
SKU: MOZA-I-FOCUS-M
âı4,000
Inclusive of all taxes
- View Shipping Details
Dimensions and Weight
Unit
NOS
Manufacturer
Moza
Country of Origin
China
Highlights
- Lightweight, Quiet 15mm Rod Mount Motor
- For Moza Air 2 and AirCross 2 Gimbals
- Two Units Can Be Mounted on AirCross 2
- Powered via CAN Bus Connection to Gimbal
- Controllable by Handwheel or Hand Unit
- 328' Wireless Distance
Explore
Description

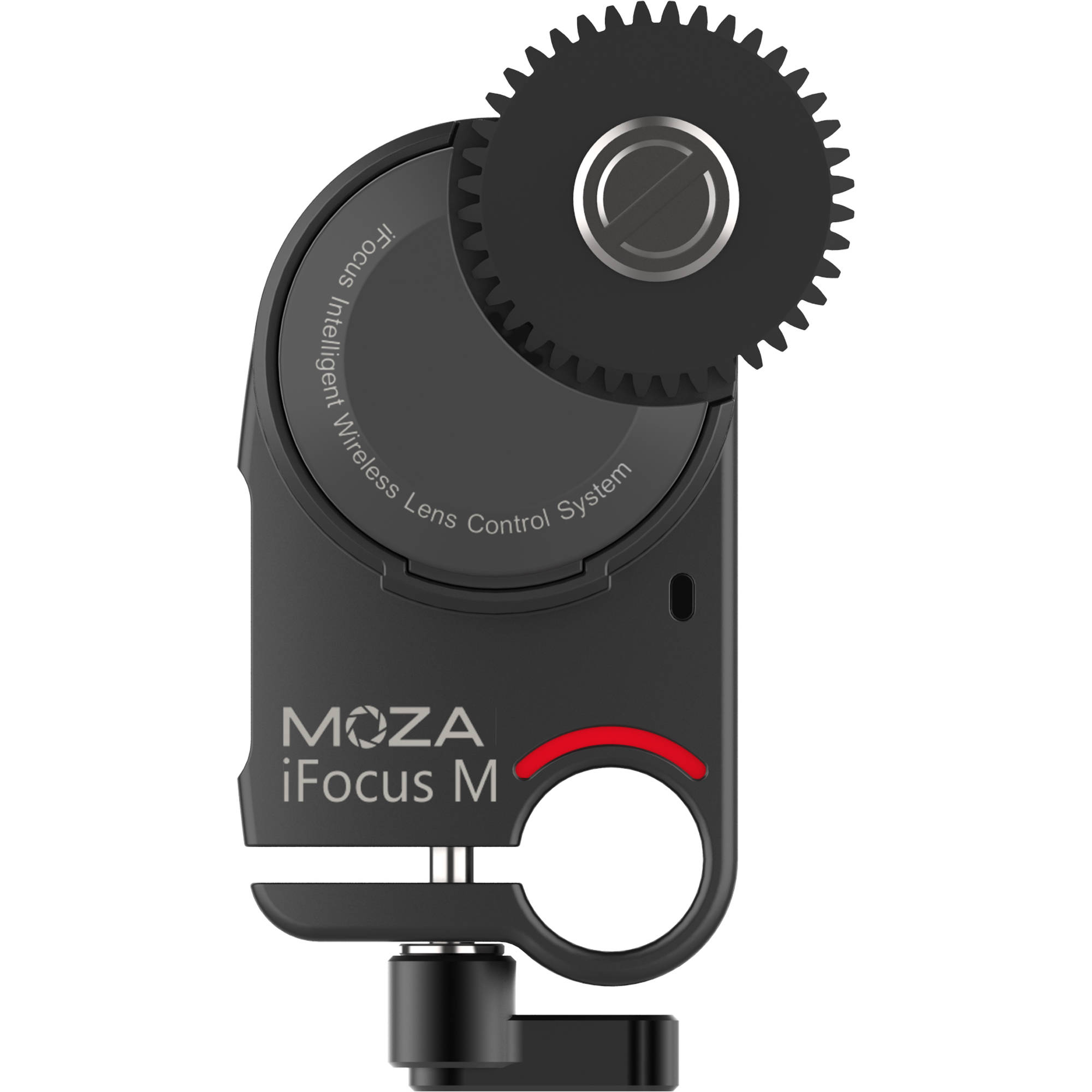

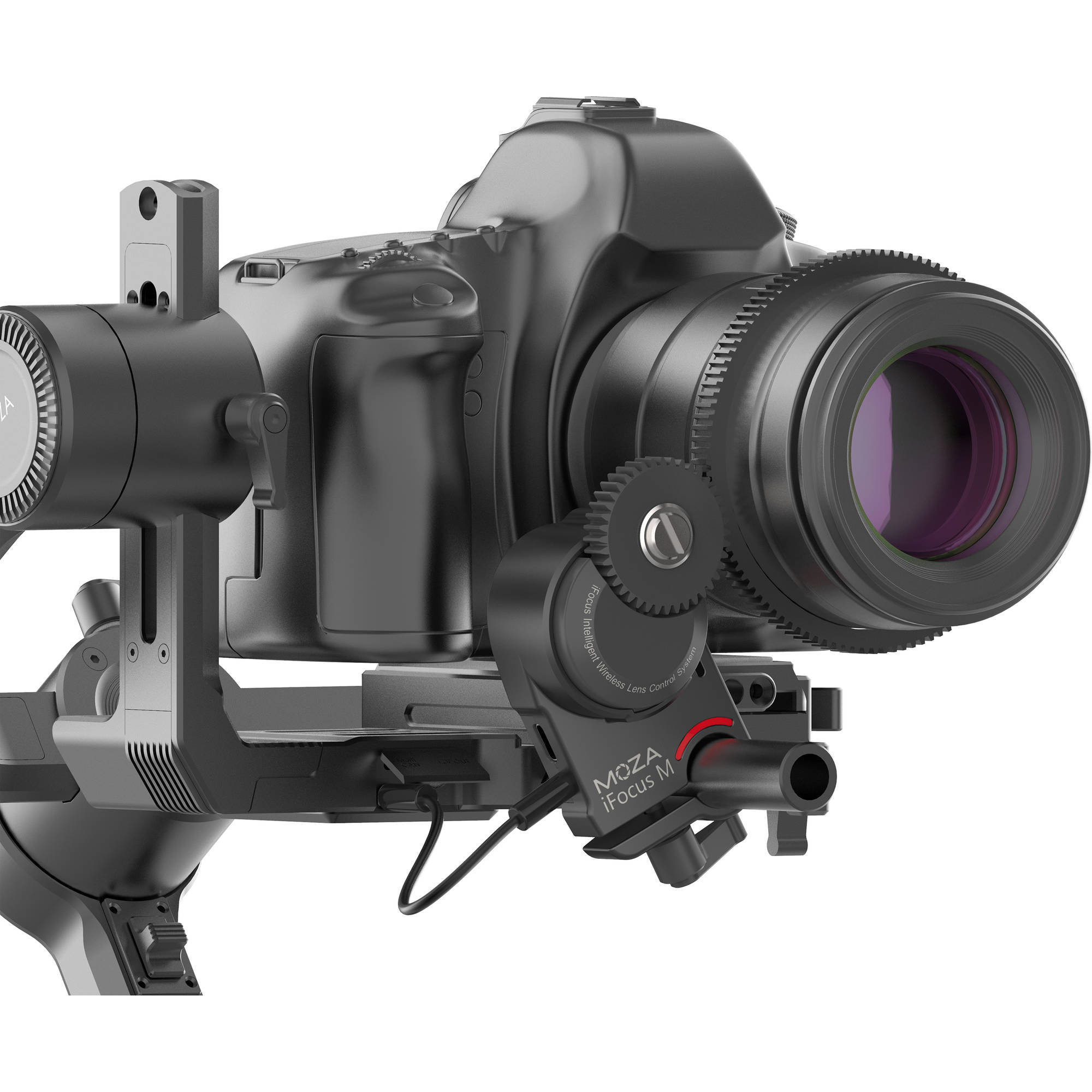

The Moza iFocus-M is a lightweight wireless lens control motor for the Moza Air 2 and AirCross 2 gimbal. Whereas the standard iFocus motor is made of aluminum and features a built-in battery, the iFocus-M has a plastic housing and connects to the gimbal for power via an included, short Multi-CAN cable. The motor mounts on a 15mm rod via a built-in rod port and can be aligned to the focus or zoom ring. It can be controlled by the gimbal handwheel or using an optional Moza hand unit from up to 328' away.Two iFocus-M motors can be used at the same time with the AirCross 2 because this gimbal offers two Multi-CAN ports. The gimbal handwheel can be used to control one motor and the optional hand unit the other. Alternatively, the handwheel can be switched between controlling one or the other motor via settings changes.Key FeaturesLightweight lens control motor for Moza Air 2 and AirCross 2 gimbal15mm-rod mountPowered via a Multi-CAN port using an included cableCan be controlled by gimbal ha...View Morespecifications
Torque
0.25 Nm
Gear
40 Teeth, 0.8 Mod
Rod Clamp Type
15 mm
Operating Frequency
2.415 - 2.473 GHz
View More Specifications
