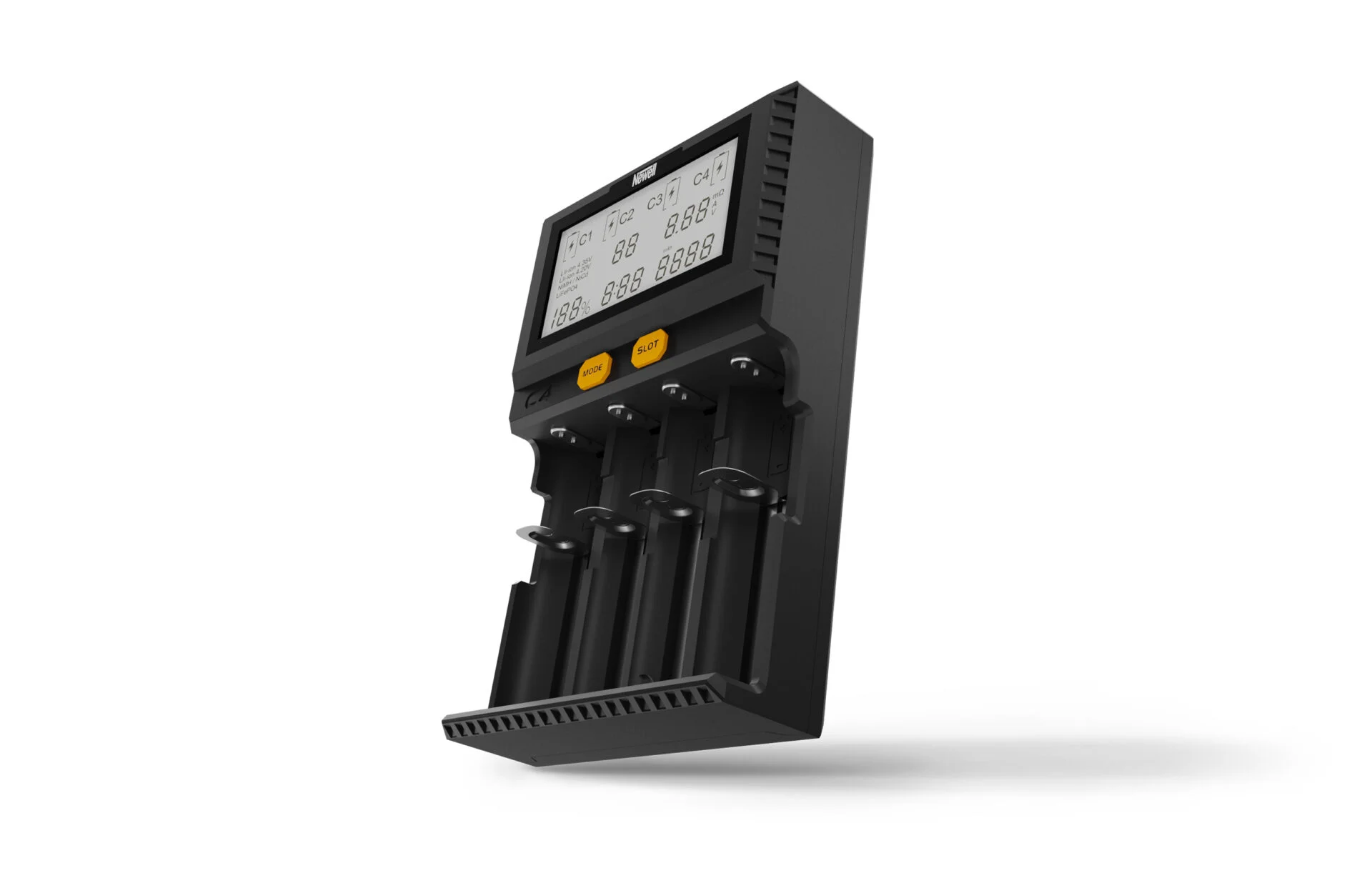

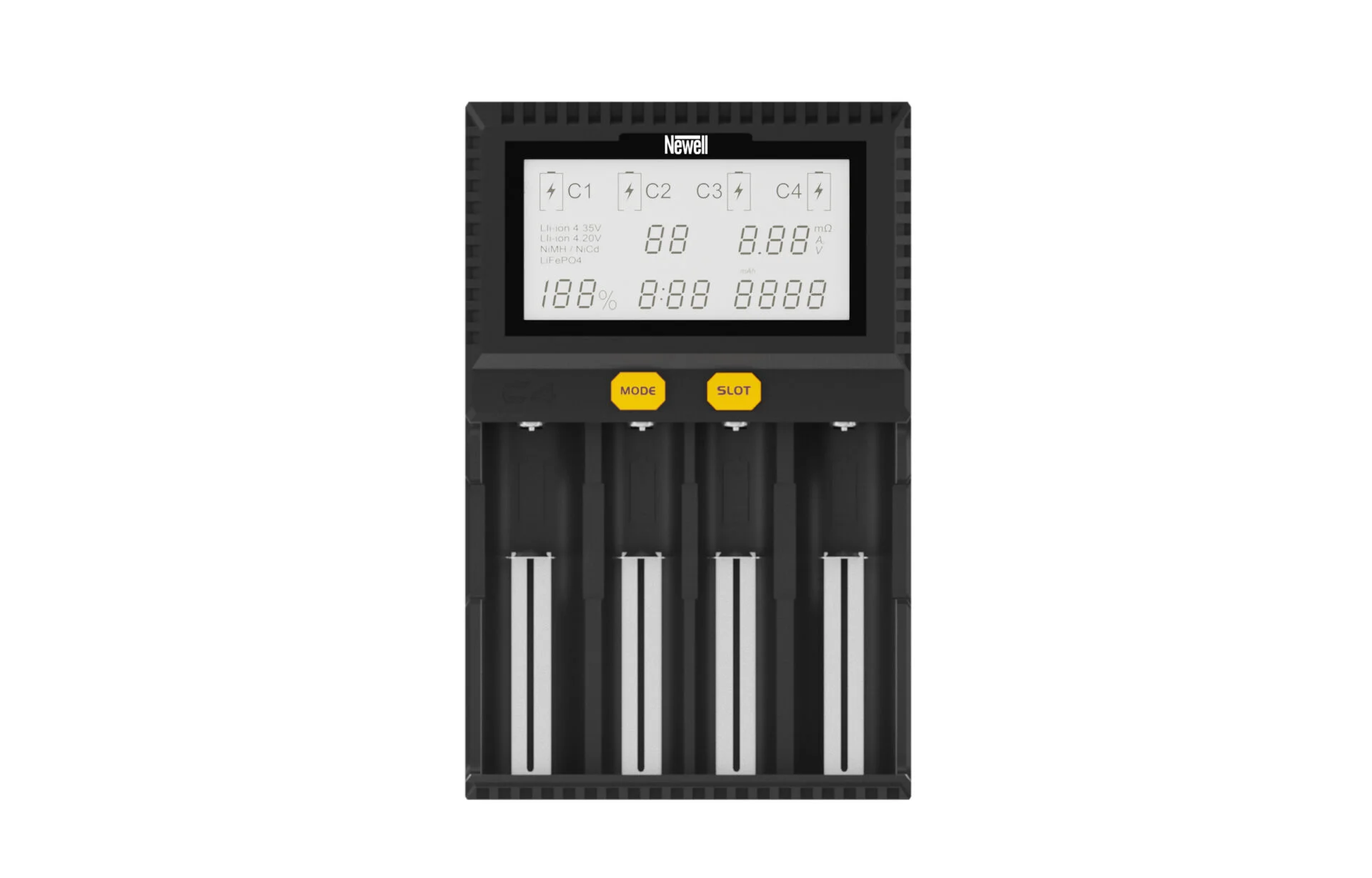

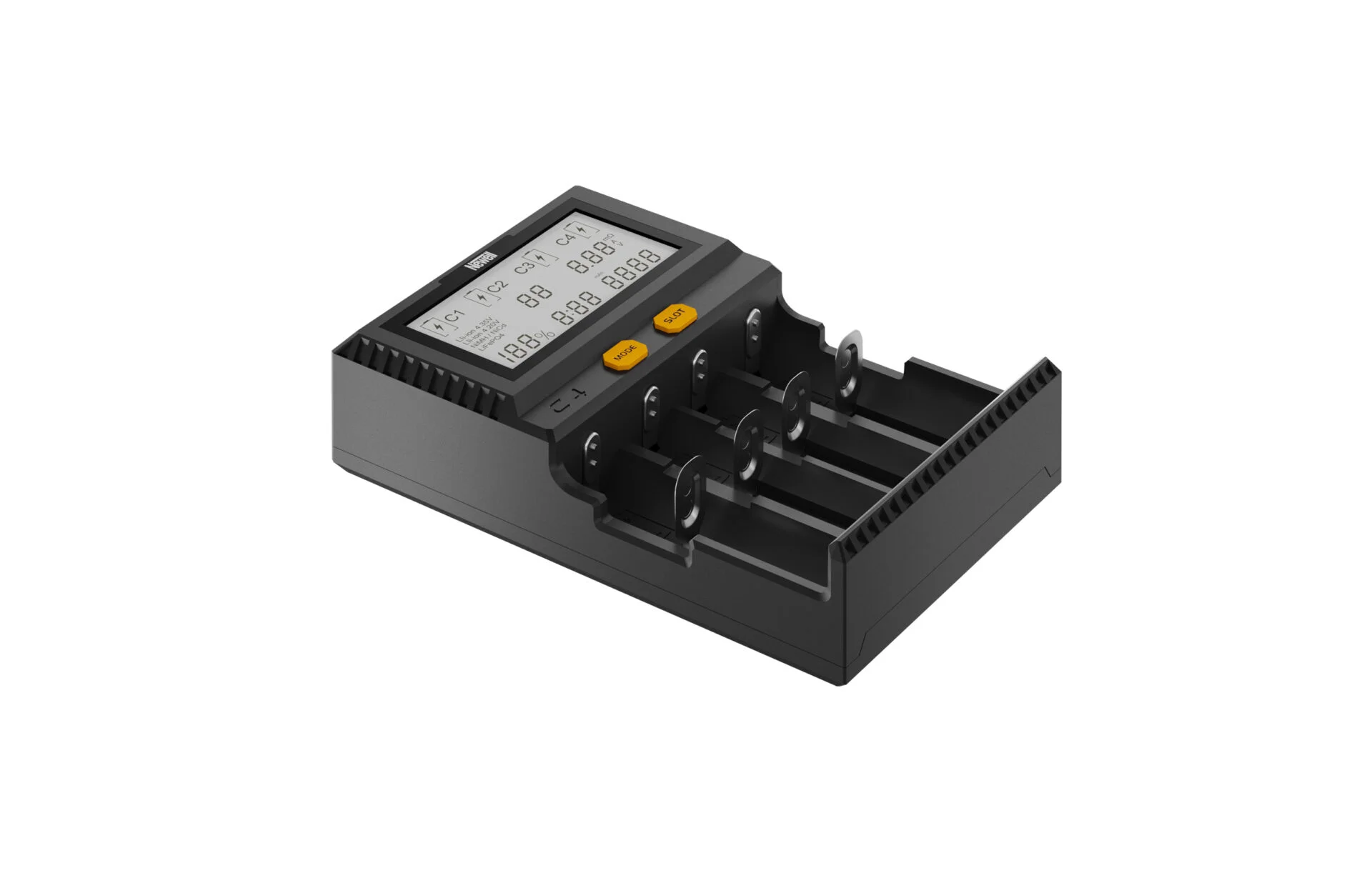

Newell C4 Supra is a universal charger, compatible with most cylindrical batteries available on the market. The LCD display shows voltage, current, charging time, internal resistance and percentage of charge of the cell – all this allows you to easily determine the parameters and status of the process. The specially designed housing allows even the largest batteries (type C or 22650) to be charged simultaneously in all four channels.

Automatic or manual selection of the optimum current intensity

By default, the charger automatically determines the charging current based on the battery characteristics. It is also possible to set the intensity manually.

Selecting the battery type

Newell Smart C4 automatically detects the 4.2 V Li-ion and 1.48 V NiMH/NiCd battery type. LiFEP04 and Li-ion 4.35V batteries are not detected automatically. In order to charge these batteries, their type must be entered manually.

Measurement of internal resistance and cell capacity

Before charging, the device measures the internal resistance and estimates the capacity of the cell. Both values are displayed on the LCD display.

Professional capacity calculation

After the charging is completed, the display shows the estimated capacity of the battery. The charger also enables a more precise calculation of the capacity through the charging and discharging process (the function is available only on channel 4).

Numerous protections

Protection against incorrect battery insertion and short-circuits and automatic stopping of the charge with a fully charged battery to avoid overcharging make the process safe and energy-saving.

Repair of over-discharged lithium-ion batteries

Most chargers are not able to charge over-discharged or 0V cells. Newell Smart C4 will attempt to reactivate and repair a lithium-ion battery when it detects such a cell. Unfortunately, cells discharged below a certain level are destroyed and may not be able to reactivate them.

Unit	NOS
Manufacturer	Newell
Country of Origin	China

Newell Brand Smart C4 Supra Battery Charger for NiMH/Li-Ion batteries
