The angled view Endeavor HD 20-60x82 Spotting Scope combines a nitrogen-filled magnesium housing and a fully multicoated optical path to create a well-equipped zoom optic for intermediate to long-range observation. Endeavor HD series features an extra-low dispersion (ED) lens system and phase-corrected BaK4 prisms, which maximize light transmission and produce color faithful images that are rich with contrast.

This version of the Endeavor HD spotting scope includes a 20-60x zoom eyepiece featuring a rubber zoom dial. A 1:3 zoom ratio and 2.1-1.0° angle of view complement the eyepiece's long 19mm eye relief and rubber eyecup, which help to provide additional viewing comfort for long-duration observations.

In addition to the image quality and weather-sealed construction, the Endeavor HD includes several features that enhance the scope's functionality. A stacked dual-focus mechanism enables the observer to make fine and coarse focus adjustments. The tripod mounting foot has a standard 1/4" socket and is compatible with Vanguard tripods that accept the universal mounting shoe. An integrated sunshade and included custom fit raincoat carrying case help to make the Endeavor HD a full-featured spotting scope for outdoor use.

Optical Performance

20-60x magnification, 82mm objective
Extra-low dispersion glass elements, BaK4 prisms
Fully multicoated optics
2.1-1.0° angle of view
19.7 ft close focus distance (at 20x)

Use and Handling

Angled view eyepiece is inclined 45° from the objective lens

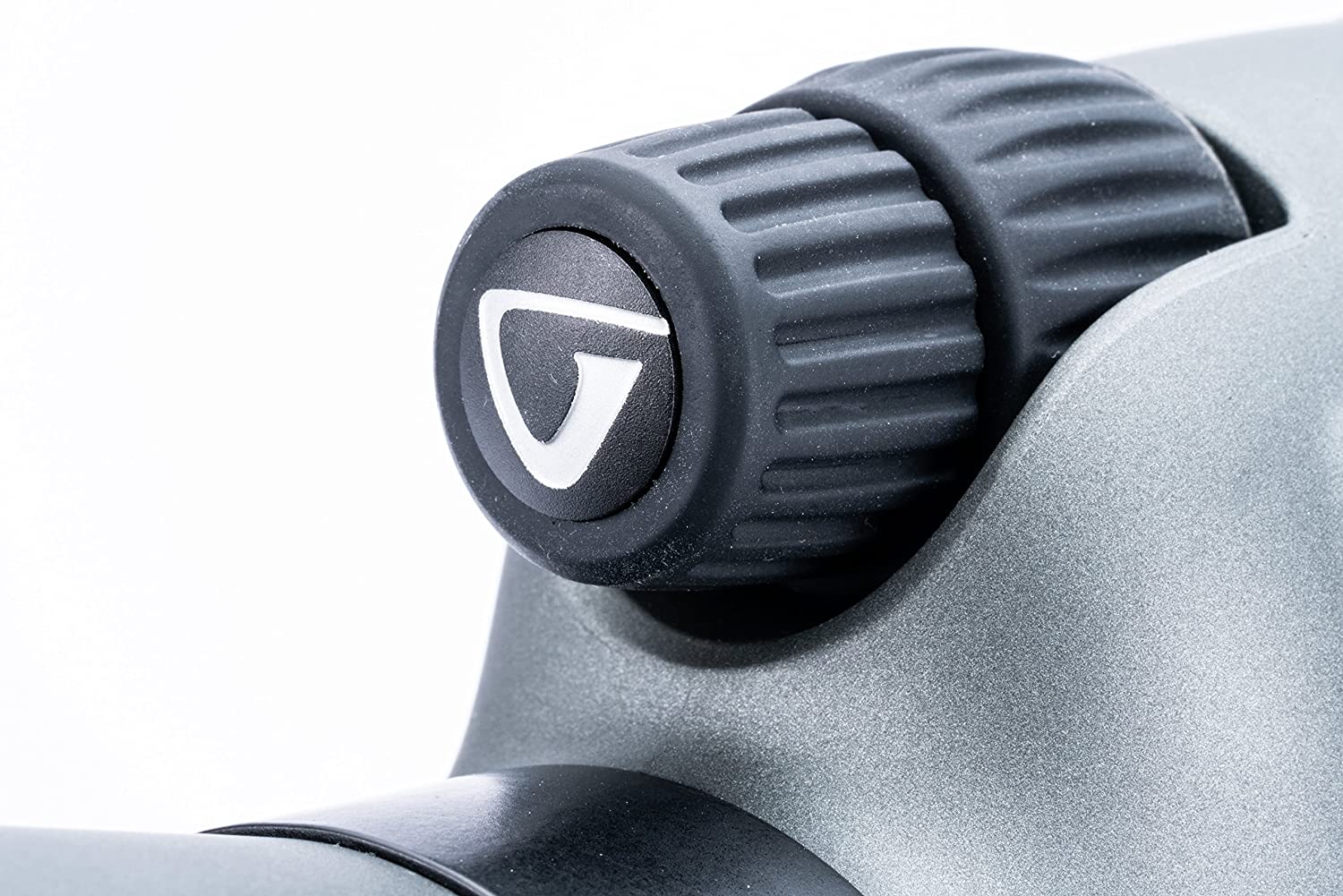

Separate coarse / fine focus controls
Interchangeable eyepiece mount
Tripod mounting foot

Construction Details

Nitrogen-filled fog proof / waterproof housing
Magnesium body with textured rubber armor
Built-in sunshield

Unit	NOS
Manufacturer	Guardforce Group, Plot No 33/1+33Ka/2+34Ka/1, Block No. 560, Lakepoet,Taw Village Hmawbi T/S Yangon, Myanmar
Country of Origin	Myanmar

Vanguard Endeavor HD 82A Spotting Scope 20-60X
